Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means, these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
As one of the top angular contact ball bearing manufacturers, The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis. VXO Angular Contact Ball Bearing supplier mainly manufacturer the following linear motion bearing types: high speed linear bearings, double row angular contact ball bearing, four point contact ball bearings, and single row angular contact ball bearing.
The primary difference between an angular contact bearing and a ball bearing lies in their design and load-carrying capabilities. Both are types of ball bearings, but they are optimized for different applications.
A ball bearing, also known as a radial ball bearing, is designed to support primarily radial loads perpendicular to the shaft's axis. It consists of an inner and outer race with balls sandwiched between them, allowing smooth rotation and reduced friction. Ball bearings are commonly used in applications with rotational motion, such as electric motors, fans, and pumps, where the load is predominantly radial.
In contrast, an angular contact bearing is a specialized type of ball bearing designed to handle both axial and radial loads simultaneously. It features an inclined raceway design that allows for efficient load distribution in both directions. The contact angle between the balls and the raceways determines the bearing's load-carrying capacity. Angular contact bearings are widely used in applications where combined axial and radial loads exist, such as machine tools, automotive wheels, and industrial gearboxes.
VXO Angular Contact Ball Bearing Supplier Reference
What is the difference between angular contact bearing and ball bearing?
The key difference between a radial ball bearing and an angular contact ball bearing lies in their load-carrying capabilities and their applications.
A radial ball bearing, as the name suggests, is primarily designed to support radial loads perpendicular to the shaft's axis. It has a 0-degree contact angle between the balls and the raceways, enabling efficient radial load distribution. Radial ball bearings are commonly used in applications where the load acts perpendicular to the shaft's axis, such as in electric motors, pumps, and fans.
On the other hand, an angular contact ball bearing is engineered to handle both axial and radial loads. It features an inclined raceway design, which allows for efficient load distribution in both axial and radial directions. The contact angle between the balls and the raceways determines the bearing's load-carrying capacity. Angular contact bearings are ideal for applications where both axial and radial loads coexist, such as machine tools, robotics, and automotive wheels.
Radial ball bearings are designed for pure radial load support, while angular contact ball bearings are suitable for applications with combined axial and radial loads. Understanding these distinctions is essential for selecting the right type of bearing for specific industrial applications.
VXO Angular Contact Ball Bearing Supplier Reference
What is the difference between radial and angular contact ball bearing?
At VXO Angular Contact Ball Bearing Supplier, we offer a wide range of high-quality angular contact ball bearings, catering to diverse industrial needs. Our comprehensive product lineup includes various types of angular contact ball bearings, each designed to meet specific application requirements and deliver superior performance.
Miniature Angular Contact Bearings: These compact bearings are ideal for applications with limited space or where reduced weight and size are critical. Despite their small dimensions, they maintain excellent load-carrying capacity and precision.
Flanged Angular Contact Bearings: Featuring an integrated flange on the outer ring, these bearings simplify mounting and improve axial alignment in applications with axial loads.
Face to Face Angular Contact Bearings: In this configuration, two bearings are arranged face to face, enhancing their ability to handle axial and radial loads simultaneously.
Angular Contact Thrust Ball Bearings: Designed to withstand high axial loads, these bearings are suitable for applications requiring precise axial motion control, such as machine tool spindles.
Thin Section Angular Contact Bearings: These bearings have a slim cross-section, making them suitable for applications where space is limited or weight reduction is essential.
Stainless Steel Angular Contact Bearings: Ideal for corrosive environments or applications requiring resistance to moisture and chemicals, these bearings feature stainless steel construction for enhanced durability.
Small Angular Contact Bearings: These bearings are specially designed for applications where space is limited but reliable load-carrying capacity is essential.
Sealed Angular Contact Bearings: Equipped with effective sealing mechanisms, these bearings offer protection against contaminants and extend their service life.
Preloading Angular Contact Bearings: Preloaded bearings offer improved rigidity and reduced deflection, making them suitable for high-precision applications.
Duplex Angular Contact Bearings: Comprising pairs of bearings with precise angular spacing, duplex bearings ensure precise control over motion and load distribution.
Ceramic Angular Contact Bearings: Utilizing ceramic balls, these bearings provide enhanced performance with reduced friction, higher speed capabilities, and resistance to heat and corrosion.
Our extensive selection of angular contact ball bearings underscores our commitment to delivering top-notch products that meet the diverse demands of our customers. Whether you require miniature bearings for compact applications or ceramic bearings for high-performance needs, VXO Angular Contact Ball Bearing Factory is your trusted partner in precision engineering solutions. Our bearings are designed to excel in various industries, including automotive, aerospace, robotics, and more, ensuring optimal performance and reliability in critical applications.
VXO Angular Contact Ball Bearing Supplier Reference
Types of Angular Contact Ball Bearings
Radial contact ball bearing is a type of precision bearing where the action of the load transmitted is radial to the axis of the shaft. Radial contact ball bearings are the most popular and widely used in industrial machinery applications for linear bearing manufacturers, because of their versatility. Radial contact ball bearings are primarily designed to support radial loads perpendicular to the shaft's axis. They have a simpler construction, featuring a 90-degree angle between the inner and outer raceways. This design enables smooth rotation with minimal resistance, making them ideal for applications with predominantly radial loads, such as electric motors, fans, and pumps.
Angular contact bearings have a much higher speed rating than radial bearings because of the nonstop contact of the balls to both rings.
In VXO Angular Contact Ball Bearing supplier, Angular contact bearings can carry both radial and axial loads. The weight of the load is transferred from one ring to the other, through the balls, along a specific contact angle. Angular contact bearings are designed to handle combined axial and radial loads simultaneously. They feature a more inclined outer ring raceway, allowing them to absorb forces from multiple directions. This design ensures improved load distribution and higher load-carrying capacity. As a result, angular contact bearings are commonly used in applications where both axial and radial forces are present, such as in machine tools, automotive wheels, and industrial gearboxes.

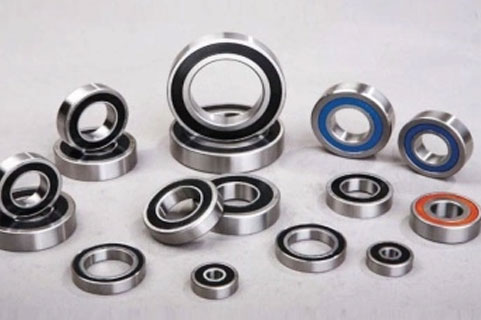

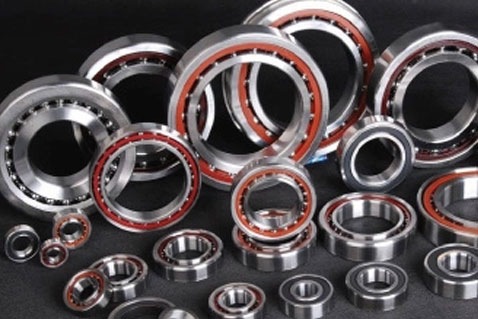

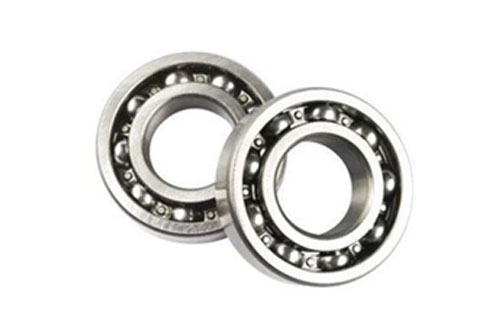

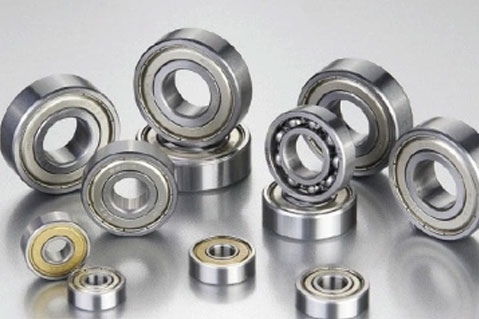

VXO Angular Contact Ball Bearing supplier mainly manufacturer the following linear motion bearing types: high speed linear bearings, double row angular contact ball bearing, four point contact ball bearings, and single row angular contact ball bearing. Angular contact bearings are ideal for use in gearboxes, pumps, electric motors, and clutches or other high-speed applications.
They are commonly used in the Materials Handling, Machine Tool, Steel Mill, and Wind Energy industries.
Although angular contact bearings can accept thrust loads in only one direction, they can be manufactured at different contact angles (usually between 0 and 45 degrees) to transfer the load acting upon the bearing.
Angular contact ball bearings are versatile components that find wide linear motion application across various industries due to their ability to handle both axial and radial loads simultaneously. Let's explore how these bearings are used in different applications, with a focus on Ball Screws in Medical and Health, Packaging and Processing, Food Processing, Material Handling, Aerospace & Defense, Clean Energy, Machine Tool, Factory Automation, and Design Tools.
Angular Contact Ball Bearings for Medical and Health
In the medical and health industry, precision and reliability are critical. Ball screws with angular contact ball bearings are employed in various equipment like robotic surgical systems, medical imaging machines, and prosthetic devices. These bearings provide high load-carrying capacity and smooth motion, ensuring precise movement of components in surgical tools and diagnostic equipment. The enhanced accuracy of angular contact ball bearings enables surgeons to perform delicate procedures with utmost precision and safety.
Angular Contact Ball Bearings for Packaging and Processing
Packaging and processing industries rely on efficient and reliable machinery to handle large volumes of products. Angular contact ball bearings play a crucial role in conveyor systems, filling machines, and carton sealers. The bearings' ability to handle both axial and radial loads makes them suitable for applications requiring smooth and consistent movement. Their high-speed capabilities and durability ensure reliable operation in demanding packaging and processing environments.
Angular Contact Ball Bearings for Food Processing
In the food processing industry, hygiene and contamination control are paramount. Angular contact ball bearings are used in various food processing equipment such as mixers, slicers, and filling machines. Their sealed and lubricated design prevents the entry of contaminants and allows for easy maintenance. These bearings' corrosion-resistant materials make them ideal for handling food products safely and efficiently.
Angular Contact Ball Bearings for Material Handling
Material handling equipment, like forklifts, cranes, and conveyor systems, require bearings capable of withstanding heavy loads and continuous use. Angular contact ball bearings offer excellent load-carrying capacity, making them ideal for material handling applications. Their design ensures smooth rotation and reduced friction, leading to energy-efficient material handling systems.
Angular Contact Ball Bearings for Aerospace & Defense
The aerospace and defense industries demand high-performance bearings that can withstand extreme conditions. Angular contact ball bearings are used in aircraft landing gear, helicopter rotors, missile guidance systems, and other critical components. These bearings provide exceptional strength, precision, and fatigue resistance, ensuring the reliable operation of aerospace and defense systems.
Angular Contact Ball Bearings for Clean Energy
Angular contact ball bearings play a vital role in clean energy applications, such as wind turbines and solar tracking systems. In wind turbines, these bearings support the main shaft, rotor, and pitch systems, enduring heavy loads and cyclic stresses. In solar tracking systems, angular contact bearings allow solar panels to follow the sun's movement, maximizing energy capture. Their high efficiency and long service life contribute to the sustainability of clean energy solutions.
Angular Contact Ball Bearings for Machine Tool
Machine tools require high precision and repeatability for accurate machining processes. Angular contact ball bearings are extensively used in spindle assemblies, guiding mechanisms, and rotary tables of machine tools. Their superior accuracy and rigidity help maintain precise tool positioning and improve machining quality in manufacturing processes.
Angular Contact Ball Bearings for Factory Automation
In factory automation systems, angular contact ball bearings contribute to the smooth operation of robotic arms, linear actuators, and pick-and-place machines. The bearings' ability to handle both axial and radial loads ensures reliable performance in various automation tasks, increasing overall productivity and efficiency.
Angular Contact Ball Bearings for Design Tools
Design engineers use angular contact ball bearings in various design tools and prototypes. The bearings serve as critical components in simulation rigs, test setups, and mechanical systems used for research and development purposes. Their versatility and reliability allow engineers to accurately test and optimize designs before production.
Angular contact ball bearings find extensive application across diverse industries due to their unique combination of axial and radial load-carrying capabilities. From medical equipment to clean energy solutions and factory automation, these bearings play a crucial role in ensuring precision, reliability, and efficiency in various mechanical systems and applications.
