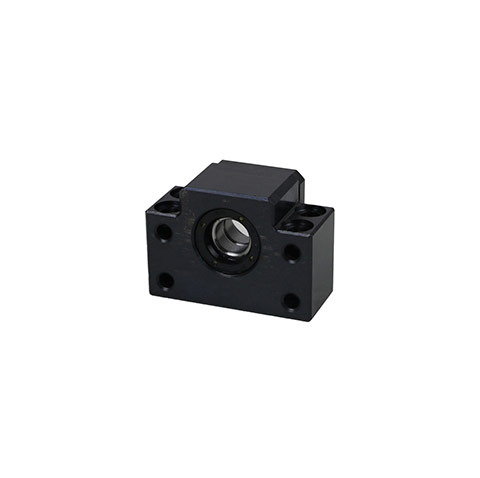

The BK ball screw fixed end supports are sometimes referred to as pillow block style. Mounting holes are provided to bolt these to the base where your ball screw will operate.
The BK ball screw end support contains two angular contact bearings that provide both axial and rotational support for the ball screw. There are 3 precision classes C3,C5 and C7 bearing supports. It is suggested to use C3 support units with a C3 ball screw. And C5 ball screw can be used with C3 or C5 support units, which enables the support units precision to match the ball screws precision. C7 ball screws should only be used with C7 support units.
Our standard ballscrews are supplied with machining that will work with these supports without modification.
Contact

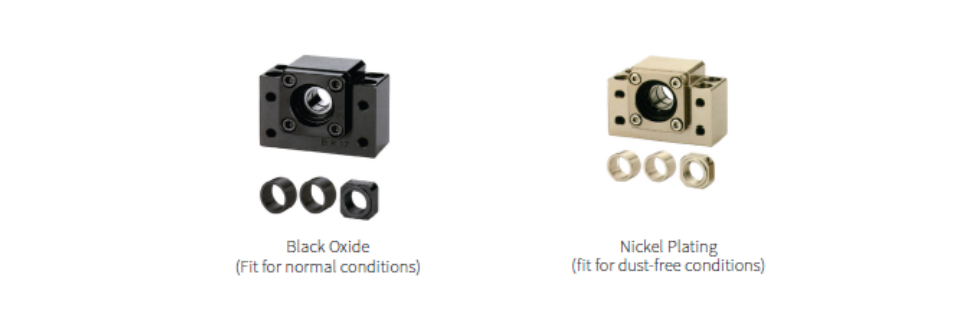

| Model No. | Surface treatment | Bearing |
| BK10 | Black Oxide | 7000A P0 |
| 7000A P5 | ||
| Electyoless Nickel Plating | 7000A P0 | |
| 7000A P5 | ||
| BK12 | Black Oxide | 7001A P0 |
| 7001A P5 | ||
| Electyoless Nickel Plating | 7001A P0 | |
| 7001A P5 | ||
| BK15 | Black Oxide | 7002A P0 |
| 7002A P5 | ||
| Electyoless Nickel Plating | 7002A P0 | |
| 7002A P5 | ||
| BK17 | Black Oxide | 7203A P0 |
| 7203A P5 | ||
| Electyoless Nickel Plating | 7203A P0 | |
| 7203A P5 | ||
| BK20 | Black Oxide | 7004A P0 |
| 7004A P5 | ||
| Electyoless Nickel Plating | 7004A P0 | |
| 7004A P5 | ||
| BK25 | Black Oxide | 7205A P0 |
| 7205B P0 | ||
| 7205A P0 | ||
| 7205B P0 | ||
| 7205A P5 | ||
| Electyoless Nickel Plating | 7205A P0 | |
| 7205B P0 | ||
| 7205A P0 | ||
| 7205B P0 | ||
| 7205A P5 | ||
| BK30 | Black Oxide | 7206A P0 |
| 7206B P0 | ||
| 7206A P0 | ||
| 7206B P0 | ||
| 7206A P5 | ||
| Electyoless Nickel Plating | 7206A P0 | |
| 7206B P0 | ||
| 7206A P0 | ||
| 7206B P0 | ||
| 7206A P5 | ||
| BK35 | Black Oxide | 7207B P0 |
| 7207B P5 | ||
| Electyoless Nickel Plating | 7207B P0 | |
| 7207B P5 | ||
| BK40 | Black Oxide | 7208B P0 |
| 7208B P5 | ||
| Electyoless Nickel Plating | 7208B P0 | |
| 7208B P5 |

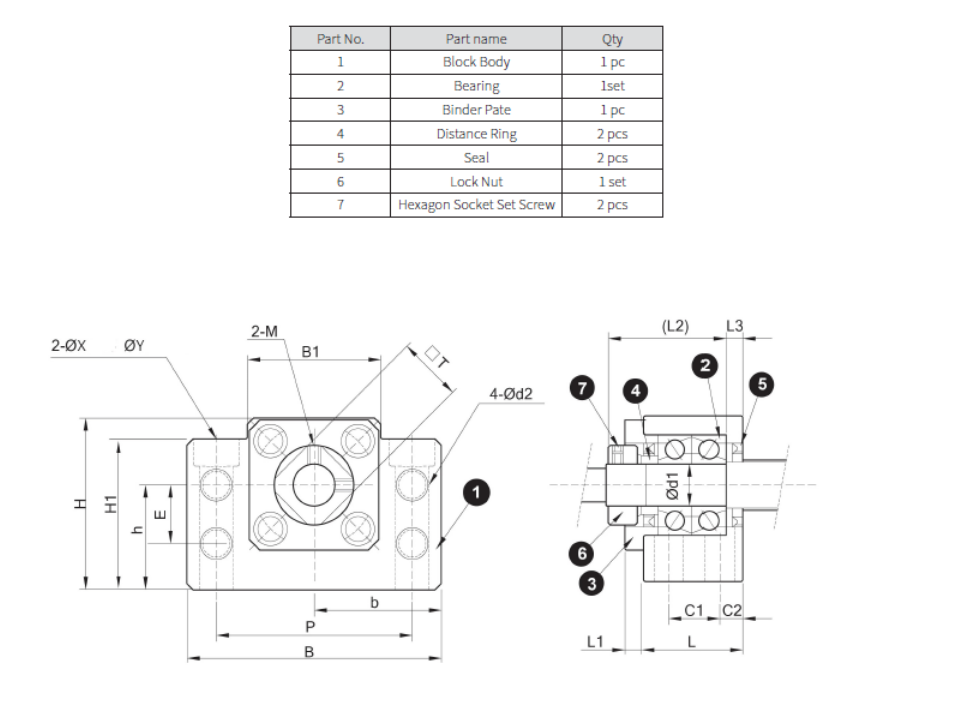

| Model No. | d1 | L | L1 | L2 | L3 | B | H | b | h | B1 | H1 | E | P | C1 | C2 | d2 | X | Y | Z | M | T |
| 0.02 | 0.02 | ||||||||||||||||||||
| BK10 | 10 | 25 | 5 | 29 | 5 | 60 | 39 | 30 | 22 | 34 | 33 | 15 | 46 | 13 | 5 | 5.5 | 6.6 | 11 | 5 | M3 | 16 |
| BK12 | 12 | 25 | 5 | 29 | 5 | 60 | 43 | 30 | 25 | 34 | 33 | 18 | 46 | 13 | 5 | 5.5 | 6.6 | 11 | 1.5 | M4 | 19 |
| BK15 | 15 | 27 | 6 | 32 | 6 | 70 | 48 | 35 | 28 | 40 | 38 | 18 | 54 | 15 | 6 | 5.5 | 6.6 | 11 | 6.5 | M4 | 22 |
| BK17 | 17 | 35 | 9 | 44 | 7 | 86 | 64 | 43 | 39 | 50 | 55 | 28 | 68 | 19 | 8 | 6.6 | 9 | 14 | 8.5 | M4 | 24 |
| BK20 | 20 | 35 | 8 | 43 | 8 | 88 | 60 | 44 | 34 | 52 | 50 | 22 | 70 | 19 | 8 | 6.6 | 9 | 14 | 8.5 | M4 | 30 |
| BK25 | 25 | 42 | 12 | 54 | 9 | 106 | 80 | 53 | 48 | 64 | 70 | 33 | 85 | 22 | 10 | 9 | 11 | 18 | 11 | M5 | 35 |
| BK30 | 30 | 45 | 14 | 61 | 9 | 128 | 89 | 64 | 51 | 76 | 78 | 33 | 102 | 23 | 11 | 11 | 14 | 20 | 13 | M6 | 40 |
| BK35 | 35 | 50 | 14 | 67 | 12 | 140 | 96 | 70 | 52 | 88 | 79 | 35 | 114 | 26 | 12 | 11 | 14 | 20 | 13 | M8 | 50 |
| BK40 | 40 | 61 | 18 | 76 | 15 | 160 | 110 | 80 | 60 | 100 | 90 | 37 | 130 | 33 | 14 | 14 | 18 | 26 | 18 | M8 | 50 |
