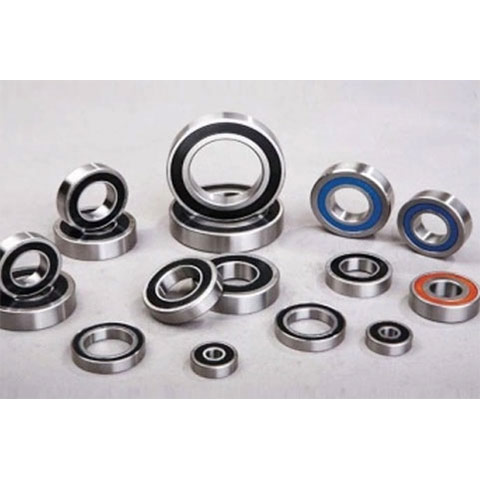

Four-Point Contact Ball Bearings

Name: Four-Point Contact Ball Bearings
Brand: SCREW TECHNOLOGY CO.,LTD.
Price: 300 USD
Rating: 4.4 (5 reviews)

Four-point contact ball bearings are radial single row angular contact ball bearings with raceways that are designed to support axial loads in both directions. For a given axial load, a limited radial load can also be supported (Load ratio). The bearings are separable, i.e. the outer ring with ball and cage assembly can be mounted separately from the two inner ring halves.

Both inner ring halves of VXO Explorer four-point contact ball bearings have a recessed shoulder. This improves oil flow when the bearing is used in combination with an VXO cylindrical roller bearing (fig. 1). In addition, these recesses can be used to facilitate dismounting.

VXO manufactures super-precision 4-point contact ball bearings for various shaft diameters. Our four point contact ball bearings offer an ideal solution for equipment that demands high precision or elevated rotational speeds, such as the main spindles in machine tools.

Contact

Features of Four-Point Contact Ball Bearings

Accommodates axial loads in both directions
Less axial space
These bearings take up considerably less axial space than double row bearings.
High load carrying capacity
A large number of balls are incorporated, giving the bearing its high load carrying capacity.
Separable design
The split inner ring leads to easier mounting and dismounting of the bearing.
Improved oil flow
Limited inner ring deformation when subjected to high clamping forces

Specification of Four-Point Contact Ball Bearings

Dimensions				Basic load rating
Designations(seals)	d	D	B	C	C0
3200 A-2RS1	10	30	14,3	7.3056	4.128
3201 A-2RS1	12	32	15,9	9.696	5.376
3202 A-2RS1	15	35	15,9	10.752	6.528
3302 A-2RS1	15	42	19	14.496	8.928
3203 A-2RS1	17	40	17,5	13.728	8.448
3303 A-2RS1	17	47	22,2	20.736	12.192
E2.3204 A-2Z	20	47	20,6	19.2	11.52
*3204 A-2RS1	20	47	20,6	19.2	11.52
E2.3304 A-2Z	20	52	22,2	22.656	14.016
*3304 A-2RS1	20	52	22,2	22.656	14.016
E2.3205 A-2Z	25	52	20,6	20.736	13.728
*3205 A-2RS1	25	52	20,6	20.736	13.728
E2.3305 A-2Z	25	62	25,4	30.72	19.584
*3305 A-2RS1	30	62	25,4	30.72	19.584
E2.3206 A-2Z	30	62	23,8	28.8	19.584
*3206 A-2RS1	30	62	23,8	27.456	19.584
E2.3306 A-2Z	30	72	30,2	39.84	26.4
*3306 A-2RS1	30	72	30,2	39.84	26.4
E2.3207 A-2Z	35	72	27	38.4	26.88
*3207 A-2RS1	35	72	27	38.4	26.88
E2.3307 A-2Z	35	80	34,9	49.92	34.08
*3307 A-2RS1	35	80	34,9	49.92	34.08
E2.3208 A-2Z	40	80	30,2	45.6	32.64
*3208 A-2RS1	40	80	30,2	45.6	32.64
E2.3308 A-2Z	40	90	36,5	61.44	42.24
*3308 A-2RS1	40	90	36,5	61.44	42.24
E2.3209 A-2Z	45	85	30,2	48.96	37.44
*3209 A-2RS1	45	85	30,2	48.96	37.44
E2.3309 A-2Z	45	100	39,7	72	50.88
*3309 A-2RS1	45	100	39,7	72	50.88
E2.3310 A-2Z	50	110	44,4	86.4	61.44
*3310 A-2RS1	50	110	44,4	86.4	61.44
E2.3211 A-2Z	55	100	33,3	57.6	45.6
*3211 A-2RS1	55	100	33,3	57.6	45.6
E2.3311 A-2Z	55	120	49,2	107.52	78.24
*3311 A-2RS1	55	120	49,2	107.52	78.24
E2.3212 A-2Z	60	110	36,5	70.56	56.16
*3212 A-2RS1	60	110	36,5	70.56	56.16
E2.3312 A-2Z	60	130	54	121.92	91.2
*3312 A-2Z	60	130	54	121.92	91.2
3212 A-2RS1	65	120	38,1	77.376	70.56
*3313 A-2Z	65	140	58,7	140.16	105.6
3214 A-2Z	70	125	39,7	84.864	76.8
*3314 A-2Z	70	150	63,5	156.48	120
3215 A-2Z	75	130	41,3	91.776	84.48
*3315 A-2Z	75	160	68,3	168.96	134.4
