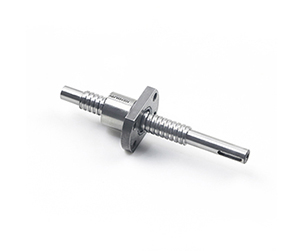

Ball screws play a pivotal role in various industries, converting rotary motion into precise linear motion. The performance and characteristics of a ball screw assembly greatly depend on the type of ball screw nut used. VXO, a prominent manufacturer specializing in ball screw nut assemblies, offers a wide range of options to cater to diverse industrial applications. In this comprehensive guide, we will explore the different types of ball screw nuts categorized by the ball circulation method, preloading method, and screw shaft type, highlighting VXO's expertise in manufacturing these critical components.
The ball circulation method refers to how the ball bearings move within the ball nut assembly. Different methods offer unique advantages and characteristics, making them suitable for specific applications.
Return-Pipe Type Ball Screw Nuts
Return-pipe type ball screw nuts employ an external ball recirculation system through a dedicated return pipe. This design ensures smooth movement of the ball bearings within the ball nut. VXO's return-pipe type ball screw nuts are renowned for their reliability and precision, making them ideal for applications that demand consistent and accurate linear motion.
Deflector Type Ball Screw Nuts
Deflector type ball screw nuts achieve ball recirculation using deflectors strategically positioned within the assembly. These deflectors guide the ball bearings, allowing them to move seamlessly between the screw and the nut. VXO's deflector type ball screw nuts are known for their simplicity and ease of maintenance, making them suitable for various industrial applications.
End-Cap Type Ball Screw Nuts
End-cap type ball screw nuts employ specially designed end caps to facilitate ball recirculation. These end caps create a pathway for the ball bearings to circulate smoothly within the system. VXO's end-cap type ball screw nuts are characterized by their robust construction and durability, making them ideal for heavy-duty applications where reliability is critical.
Preloading is a critical aspect of ball screw design, as it affects backlash elimination and overall system performance. VXO offers various preloading methods tailored to meet specific application requirements.
Fixed-Point Preloading Ball Screw Nuts
Fixed-point preloading methods ensure that there is a specific amount of preload applied to the ball screw assembly. VXO offers several options within this category:
a. Double-Nut Method: The double-nut method involves using two nuts on a single screw shaft. These nuts are precisely spaced and preloaded against each other, effectively eliminating backlash and enhancing system accuracy. This method is commonly used in applications that demand high precision, such as CNC machining and optical systems.
b. Offset Preloading: Offset preloading involves precisely offsetting the position of the nut on the screw shaft. This method ensures consistent contact between the ball bearings and the screw's raceways, reducing backlash and enhancing overall accuracy.
Constant-Pressure Preloading Ball Screw Nuts
Constant-pressure preloading methods maintain a constant pressure on the nut to ensure continuous contact between the ball bearings and the screw's raceways. VXO offers a range of constant-pressure preloading options, allowing customers to select the most suitable solution for their specific applications. This method is effective in eliminating backlash and enhancing system efficiency.
The type of screw shaft used in a ball screw assembly can significantly impact its performance. VXO manufactures ball screw nuts for two main categories of screw shafts:
Rolled Ball Screw Nuts
Rolled ball screw nuts are designed to work with rolled screw shafts. These nuts are manufactured using a rolling process that involves forming threads on the screw shaft and nut. While they may have slightly lower accuracy compared to precision ground ball screws, rolled ball screw nuts are cost-effective and suitable for various applications.
Precision Ground Ball Screw Nuts
Precision ground ball screw nuts are engineered to work with precision ground screw shafts. These nuts are manufactured with tight tolerances to provide consistent and precise linear motion. VXO's precision ground ball screw nuts are known for their exceptional accuracy and repeatability, making them ideal for applications that demand high levels of precision.
VXO, a leading manufacturer of ball screw nut assembly, offers a comprehensive range of ball screw nuts tailored to meet the diverse needs of various industries. These ball screw nuts are categorized based on the ball circulation method, preloading method, and screw shaft type, allowing customers to select the most suitable solution for their specific applications.
Whether it's return-pipe type, deflector type, or end-cap type ball screw nuts, VXO's expertise ensures reliability and precision. With fixed-point preloading options like the double-nut method and offset preloading, as well as constant-pressure preloading methods, VXO caters to industries where accuracy and repeatability are paramount.
By offering both rolled and precision ground ball screw nuts, VXO addresses the unique requirements of different screw shaft types, ensuring that their ball screw assemblies deliver the intended performance characteristics. VXO's commitment to engineering excellence and quality control ensures that their ball screw nuts continue to be a trusted choice for industries seeking precise and reliable linear motion solutions.
